Mounting Pixy2 to your LEGO creation

This guide is intended for those who purchased Pixy2 for LEGO. The hardware bag that comes with Pixy2 for LEGO is slightly different, so you may have problems with this guide if you purchased a regular Pixy2.

You'll need the following tools and parts (in addition to your Pixy2 for LEGO):

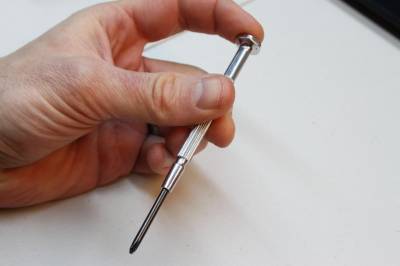

A small Phillips screwdriver, like the one shown below.

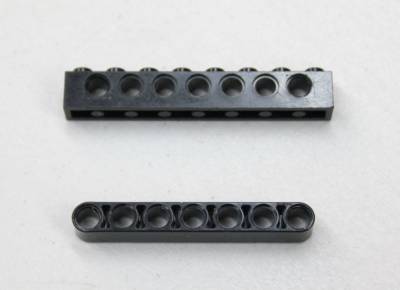

LEGO beams – you can use longer beams as long as they are equal to greater in length than the beams shown below. It depends on your preference!

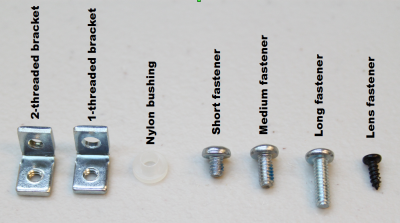

OK, first take a look at your hardware bag that's included with Pixy2 for LEGO. You should have a black lens fastener, three different lengths of machine fasteners, some nylon bushings, and some right-angle brackets. These are shown and labeled below.

Take all four right-angle brackets out and examine them. Notice that two of them have two threaded holes and two of them have one threaded hole. We'll call these 2-threaded and 1-threaded brackets, respectively. Go ahead and separate these two bracket types to make things easier.

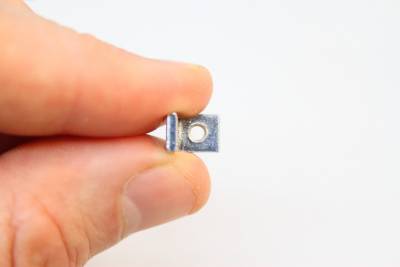

Next, grab a 2-threaded bracket. If you look really closely, you'll notice that one of its legs is ever-so-slightly longer than the other. Say what? It's true— I don't know why. But you can best see this by looking at the holes in the bracket. One of the holes is centered in its leg (see below)

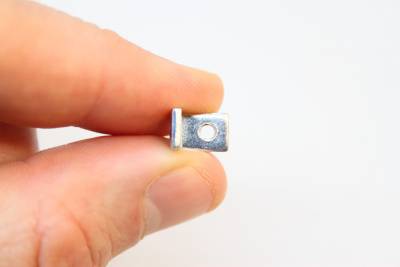

and the other hole is not centered, because its leg is slightly longer (see below).

Weird. But it's important for this first step:

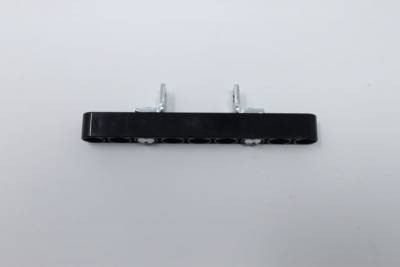

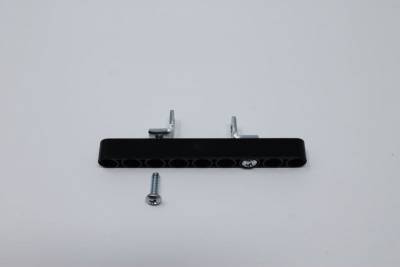

  1. Using two of the long fasteners, attach the 2-threaded brackets to the LEGO brick so that the long legs are pointing out, and the short legs are touching the brick. If you attach the other way around Pixy2 won't fit!

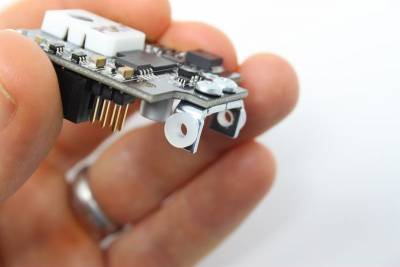

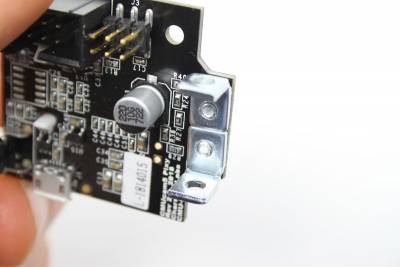

  2. Using two of the short fasteners, attach two 1-threaded brackets to your Pixy2 as shown in the picture below.



  3. Take two nylon bushings and press them into the non-threaded holes in these brackets.

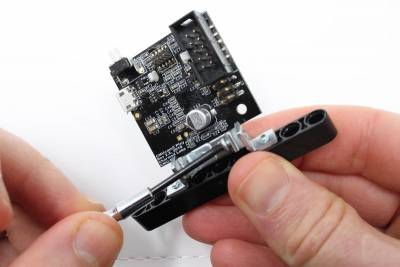

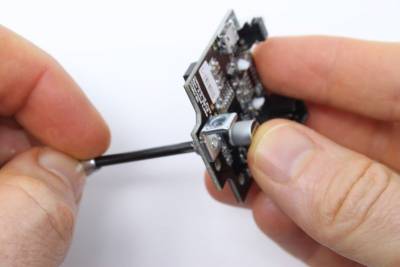

  4. Slide the Pixy2 into the brick assembly. It should fit nice and snug! Use two of the medium fasteners, and insert them from the inside as shown in the picture.


    The fasteners form an axle that you can use to tilt Pixy2 up and down. Inserting the screws from the inside allows you to tighten them down, so Pixy2 holds the desired tilt angle.

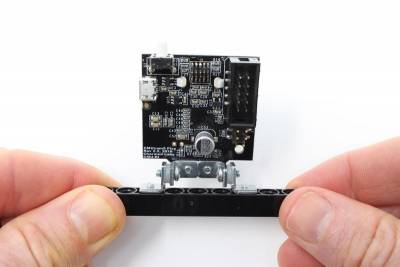

That's it! Keep your Pixy2 attached to the LEGO beam and you will always be able to easily attach Pixy2 to your LEGO creations!
